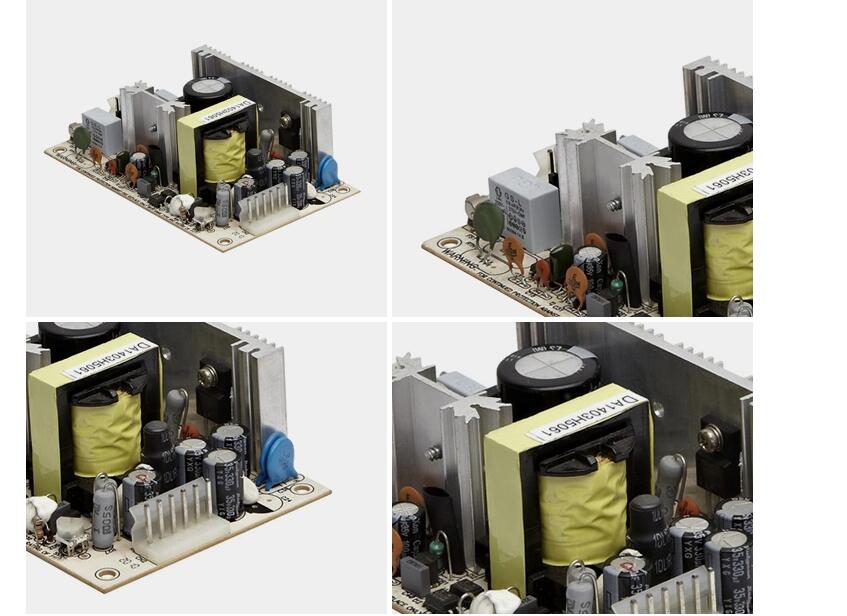

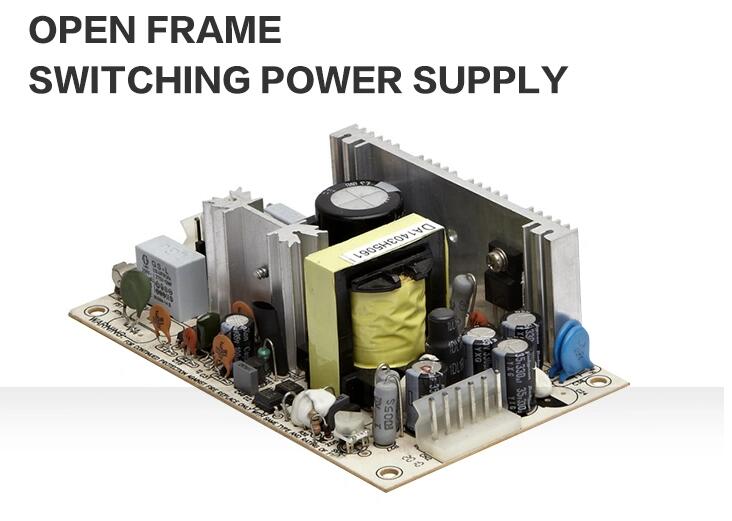

100W Open Frame Switching Power Supply with CE (PS-100-24)
OVERVIEW
Model NO. BPS-100-24
Voltage Regulating Mode Frequency Modulation Type
Warranty ＞ 2 Years
Output Power 51 W- 100W
Input Voltage 110V-220V
Connection Mode Series Switching Power Supply
Starting Mode Self-excited Switching Power Supply
Universal AC input 85VAC-264VAC
Fixed switching frequency 47HZ-63Hz
Size 178mm*108mm*46mm
PECULIARITY
100% full load burn-in test
Small size, High power density
Protections: Short circuit/Overload/Over voltage
Specification :BPS-100-24
DC output : 24V 4.2A
Wave and noise : 120mVp-p
LINE REGULATION :± 0.5%
Load REGULATION: ± 1%
Efficiency : 81%
Adjustable range for DC voltage : ± 10%
AC input voltage range : 85VAC-264VAC 47HZ-63Hz 120VDC-370VDC
AC Inrush current Cold-start current: 30A/230V
OverLoad protection :110%-180% rated output power
Over-Voltage protection :115%-135% hiccup mode, auto-recovery
Withstand voltage: I/P-O/P: 3Kv I/P-FG: 1.5KV O/P-FG: 0.5KV 1minute
Working temperature :-10º C_ +50º C
Safety Standards: Design refer to GB4943, UL60950, EN60950
EMC Standards : Design refer to GB9254, EN55022 Class B
Weight :0.65Kg
OUR ADVANTAGES
Specializing in the development of switching power supply,production and sales.
Focus on the following industries supporting :LED luminous characters,LED display ,LED lighting engineering ,automation and control,and other engineering service.
OEM&ODM SERVICE
This company is engaged in the design,manufacture and sale of power series.
LONG-TIME BURN-IN TEST
Each of the power is extremely safe and stable.
FAQ
Q1: How many year warranty of your Product?
A: More than two years.
Q2: Do you have power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu.
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it.
