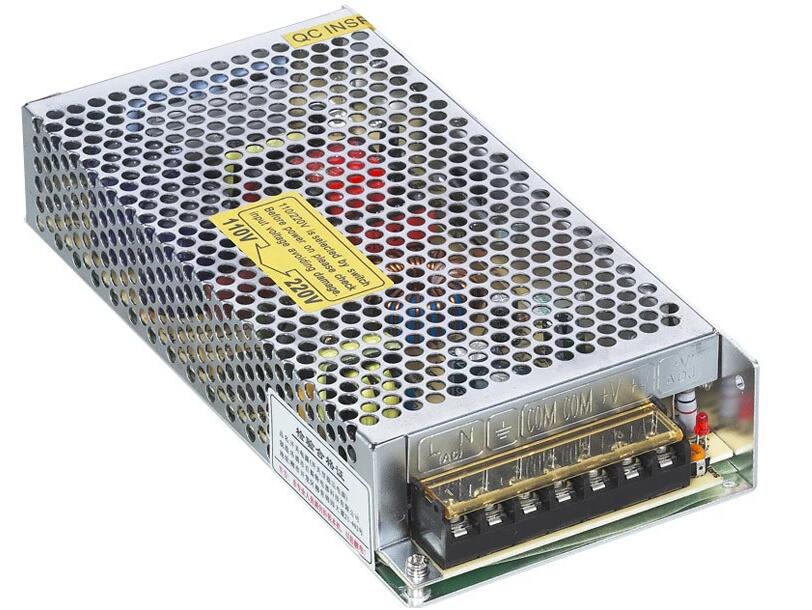

100W DC to DC Input 36-72VDC Switching Powe Supply (BSD-100C-5)
OVERVIEW
Model NO BSD-100C-5
Power Supplying System Terminal Power Distribution Equipment
Color Silver
Size 199mm*98mm*38mm
Transport Package 0.7kg/PCS; 30PCS/22kg/0.036cbm
Origin China
Voltage Regulating Mode Frequency Modulation Type
Warranty 2 Years
Output Power 51 W- 100W
Input Voltage 36VDC-72VDC
Connection Mode Series Switching Power Supply
Starting Mode Self-excited Switching Power Supply
PECULIARITY
100% full load burn-in test.
Universal input: 36-72VDC.
Protections: Short circuit/Overload/Over voltage.
Specification : 36-72VDC
DC output : 5V 20A
Wave and noise: 100mVp-p
Inlet stability : ±0.5%
Load stability : ±0.5%
Efficiency : 78%
Adjustable range for DC voltage : ±10%
AC Inrush current Cold-start current :25A/115V 50A/230V
OverLoad protection : 105%-150% hiccup mode,auto-recovery
Setup,rise,hold up time :200ms,50ms,20ms at full load and 230VAC
Withstand voltage : I/P-O/P:3Kv I/P-FG:1.5KV O/P-FG:0.5KV 1minute
Isolation resistanc : I/P-O/P IP/FG OP-FG:500VDC/100MΩ
Working temperature :-10ºC_+50ºC
Safety Standards :Design refer to GB4943,UL60950,EN60950
EMC Standards : Design refer to GB9254,EN55022 Class B
Weight :0.65Kg
OUR ADVANTAGES
Specializing in the development of switching power supply,production and sales.
Focus on the following industries supporting :LED luminous characters,LED display ,LED lighting engineering ,automation and control,and other engineering service.
OEM&ODM SERVICE
This company is engaged in the design,manufacture and sale of power series.
LONG-TIME BURN-IN TEST
Each of the power is extremely safe and stable.
FAQ
Q1: How many year warranty of your Product?
A: Two years.
Q2: Do you have power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu.
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it.
