AC Input / Full Range 240W Industrial Power Supply Short Circuit Protection

240W Single Output Industrial Power Supply

Product features

Universal AC input / full range
PF>0.99 @ 115VAC, >0.92 @ 230VAC

High efficiency up to 93%

Power on indication

Air cooling
Built-in DC OK relay contact

150% peak load capability
Optional inrush current immunity,less than 17A
Optional current sharing
Protections: Overload / Over voltage / Over temperature / Short circuit

100% full load burn-in test

3 years warranty

Specifications

Input voltage                                    90VAC~264VAC, 127VDC~370VDC

Input frequency                                47HZ~63Hz

Inrush current                                  17A @ 90~264VAC (Optional)

                                                        70A @ 230VAC

                                                        35A @ 115VAC full load cold start
Hold up time                                    ≥20ms @ 230VAC full load
Overload protection                         105%~150% of full load for 3s and shutdown output voltage with auto-recovery
Over voltage protection                   120%~140%

Operating temperature                    -25℃~70℃(refer to output derating curve)

Safety standard                               EN60950-1, UL508

EMC standard                                 EN55022 Class B,EN61000-6-2
Withstand voltage                           I/P-O/P: 3kVAC, 1min

                                                        I/P-FG: 1.5kVAC, 1min

                                                        O/P-FG: 0.5kVAC, 1min

Weight                                             0.81kg/pcs

Our Advantages

OEM&ODM SERVICE
This company is engaged in the design,manufacture and sale of switching power series

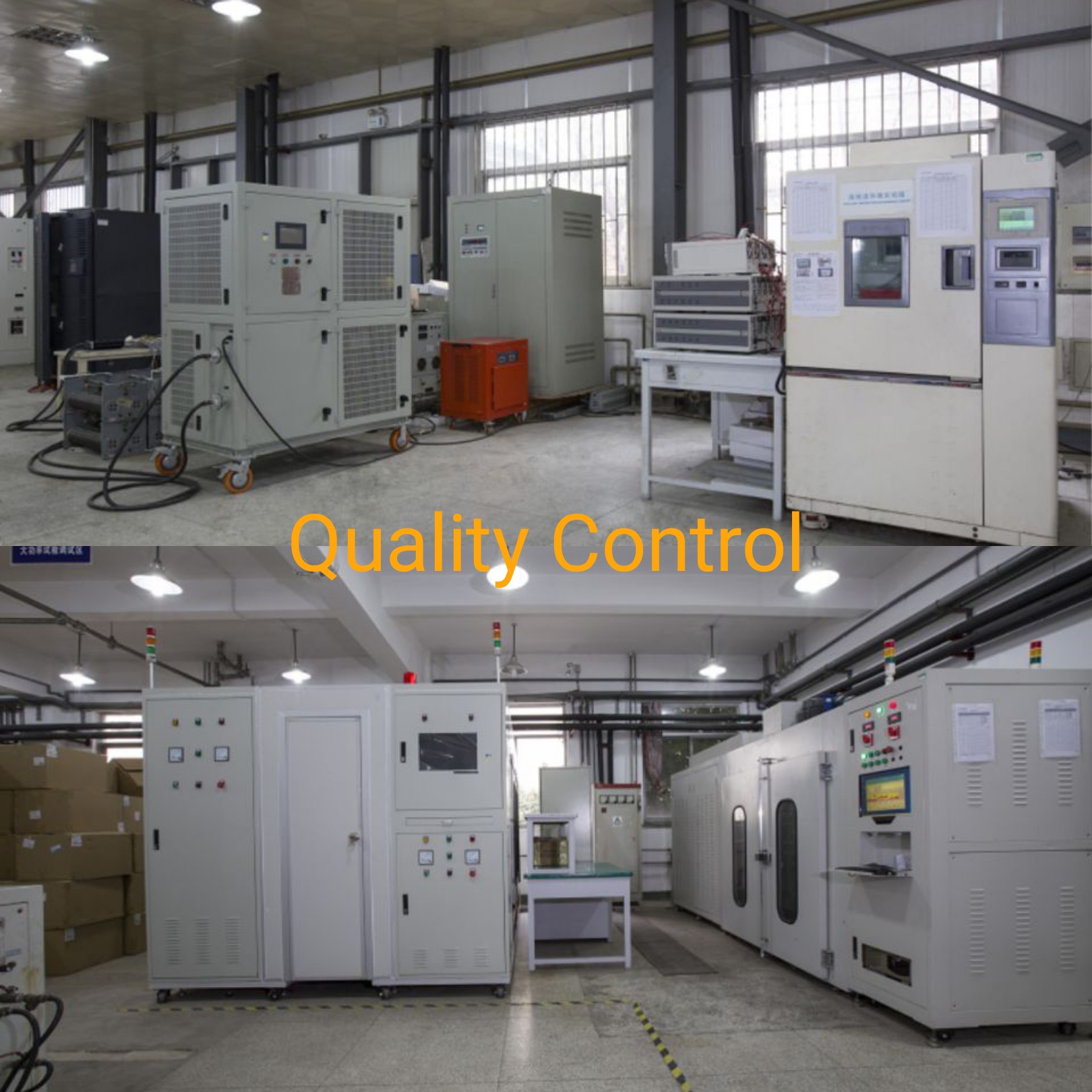

LONG-TIME BURN-IN TEST
Each of the switch power is extremely safe and stable after 5 times testing
With high reliability,105℃long life capacitor,can withstand 300VAC,input voltage 5 seconds without damage

FAQ

Q1: How many year warranty of your Led driver?
A: Three years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it.
